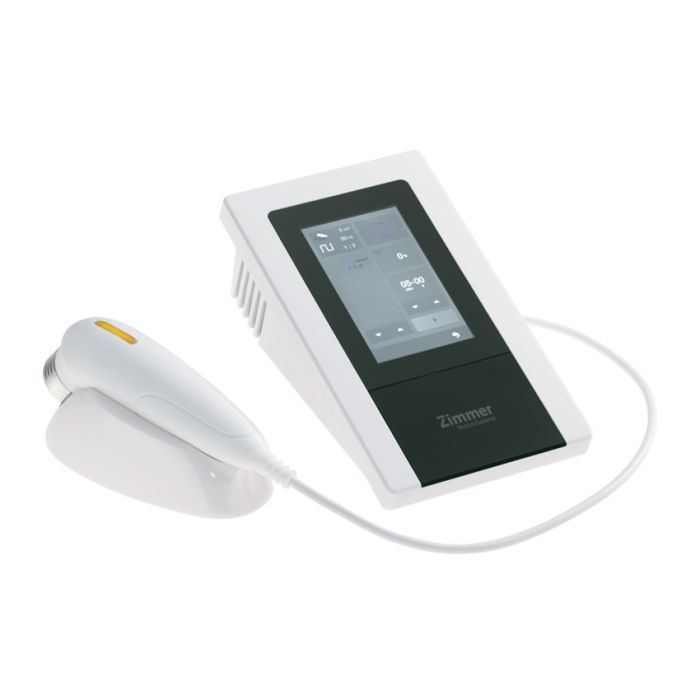

Ultrasound - Sono One
Zimmer Sono One ultrasound, frequency 1 and 3 MHz with intensity from 0.11 to 3 W / cm2.
Ultrasound - Sono One
Dimensions: 23,8 cm x 13,8 cm x 9,5 cm
ontinuous and pulsed mode (10–20–30–40–50-100%)
1 cm² and 4 cm² multi-frequency heads (1 and 3 MHz)
Intensité: Max. 3 W / cm2
Rapport de service: 1: 1, 1: 2, 1: 5, 1:10
Niveaux d'intensité: 0,1 W / cm² à 3 W / cm² par intervalles de 0,1 W / cm²
Display: Color touch screen
Poids: 1 kg (2,2 lbs)
Need for portable ultrasound therapy.
Contact us and discover a compact and efficient device. Request a demo.
ERGONOMIC AND EFFICIENT
The small, compact system is ideal for mobile use. Effective treatments thanks to frequencies
1 and 3 MHz, non-pulsed and pulsed ultrasound emission offers all the possibilities of modern and effective ultrasound therapy.
Intuitive, clearly arranged and quick to use. Color touch operation makes processing a pleasant experience.
A modality used by physiotherapists since the 1940s, it is applied using the head of an ultrasound probe which is placed in direct contact with your skin via a transmission coupling gel. Therapeutic ultrasound has been shown to cause an increase in: healing rate, tissue relaxation, tissue heating, local blood circulation and the breakdown of scar tissue.
How it works?
The ultrasound waves are generated by a piezoelectric effect caused by the vibration of the crystals inside the head of the probe. Ultrasonic waves that pass through the skin cause local soft tissue to vibrate. This vibration or cavitation can cause deep heating locally, although generally no sensation of heat is felt by the patient. In situations where a heating effect is undesirable, such as a new injury with acute inflammation, the ultrasound may be pulsed rather than transmitted continuously.
SonoOne - always ready
Ergonomic and efficient. This compact device is optimal, easy to transport. Treat efficiently with frequencies 1 and 3 MHz, the emission of ultrasound in pulsed and continuous mode allows to exploit all the possibilities of efficient and modern ultrasound. The device is intuitive, clear and the installation is quick. An easy-to-use color touchscreen. Pocket-sized ultrasound.
Effet cellulaire
Régénération par ultrasons très efficace grâce à une tête à ultrasons à la fine pointe. Absorption profonde des ondes ultrasonores et diffusion de chaleur en profondeur avec une perte d’énergie minime.
Simplicité
Manipulation en douceur. Un traitement plus précis, grâce à une interface dépourvue de complexité. Pas de superflu égale pas d’ambiguïté.
Appareil versatile
Le Sono One est équipé d'une tête à ultrasons multifréquences pour les pathologies superficielles et profondes. Grâce à son écran tactile, il offre une navigation intuitive et claire.
